DIPO

DIPO serie

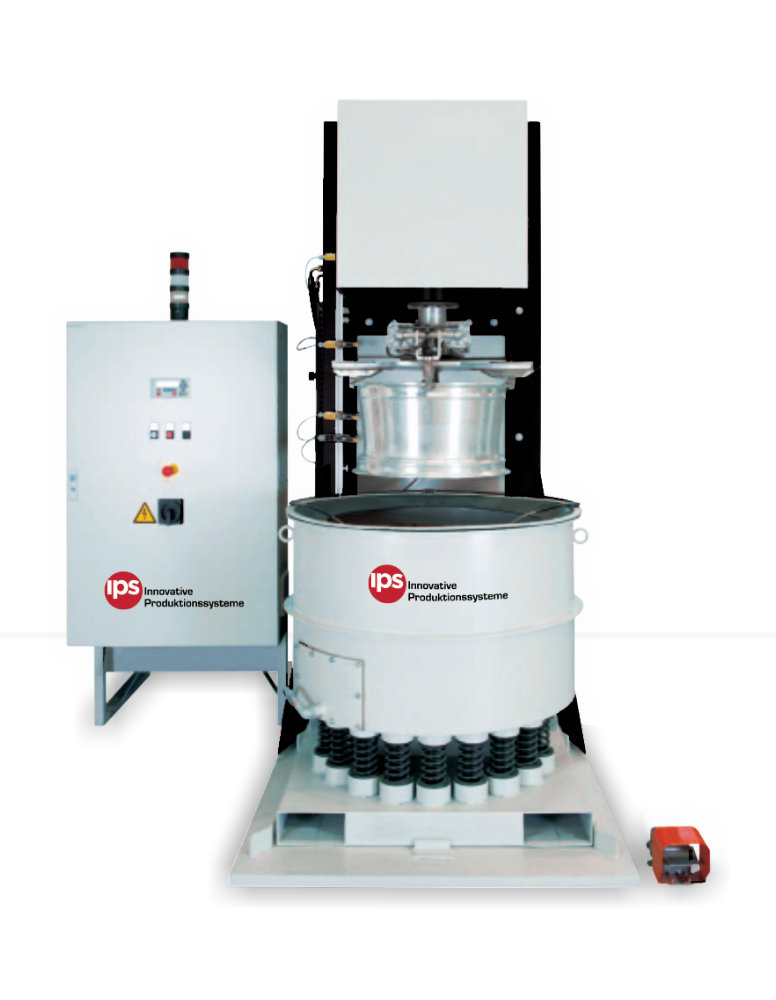

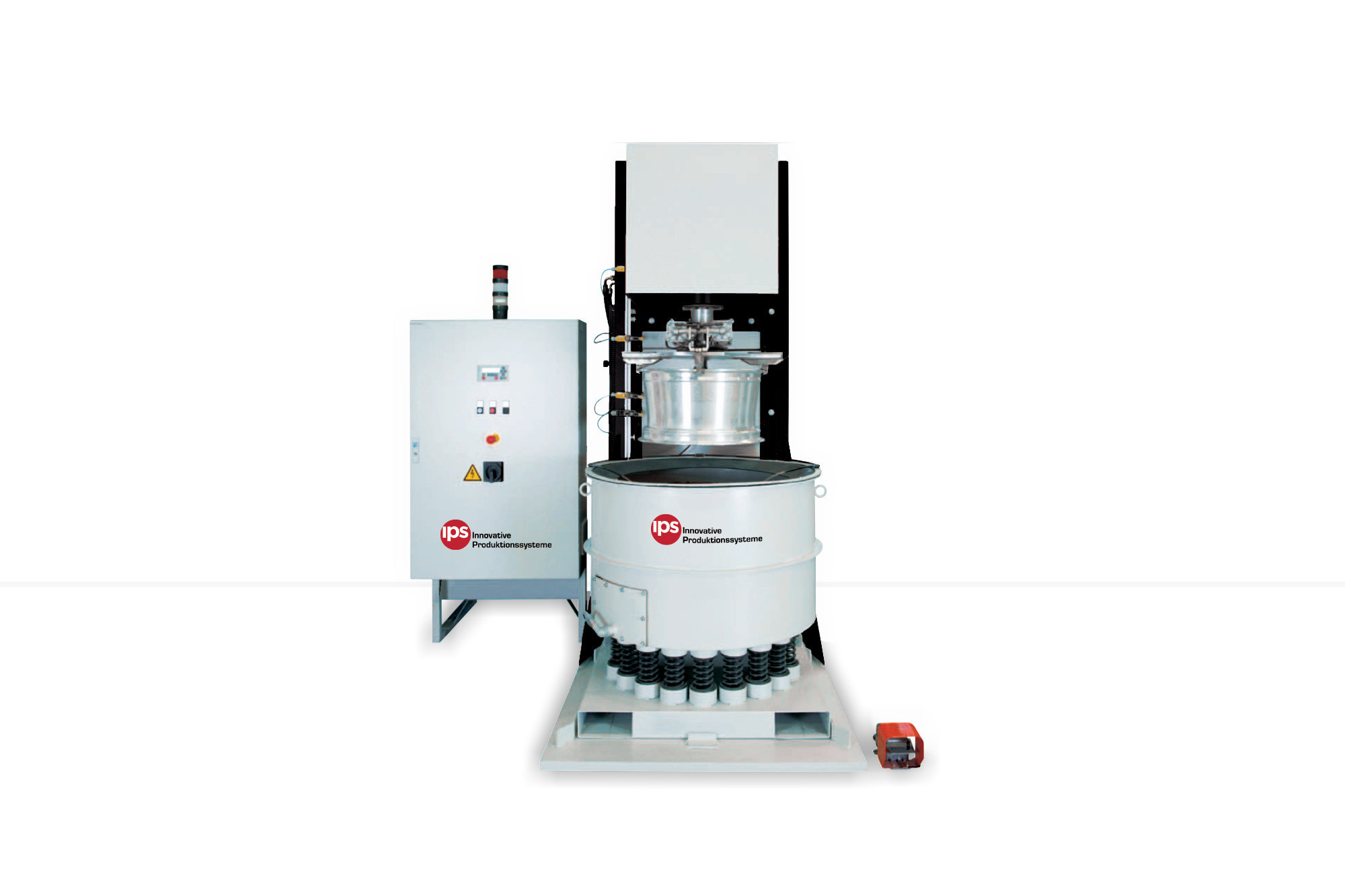

Our DIPO type plunge grinding machines are ideal for machining large and heavy workpieces with a maximum length of approx. 800 mm and a maximum weight of approx. 200 kg, which require individual part machining. With the machine, the processes of deburring, grinding and polishing can be carried out in a cost-optimised manner. The work spindle can perform various work movements in order to optimally process the workpiece.

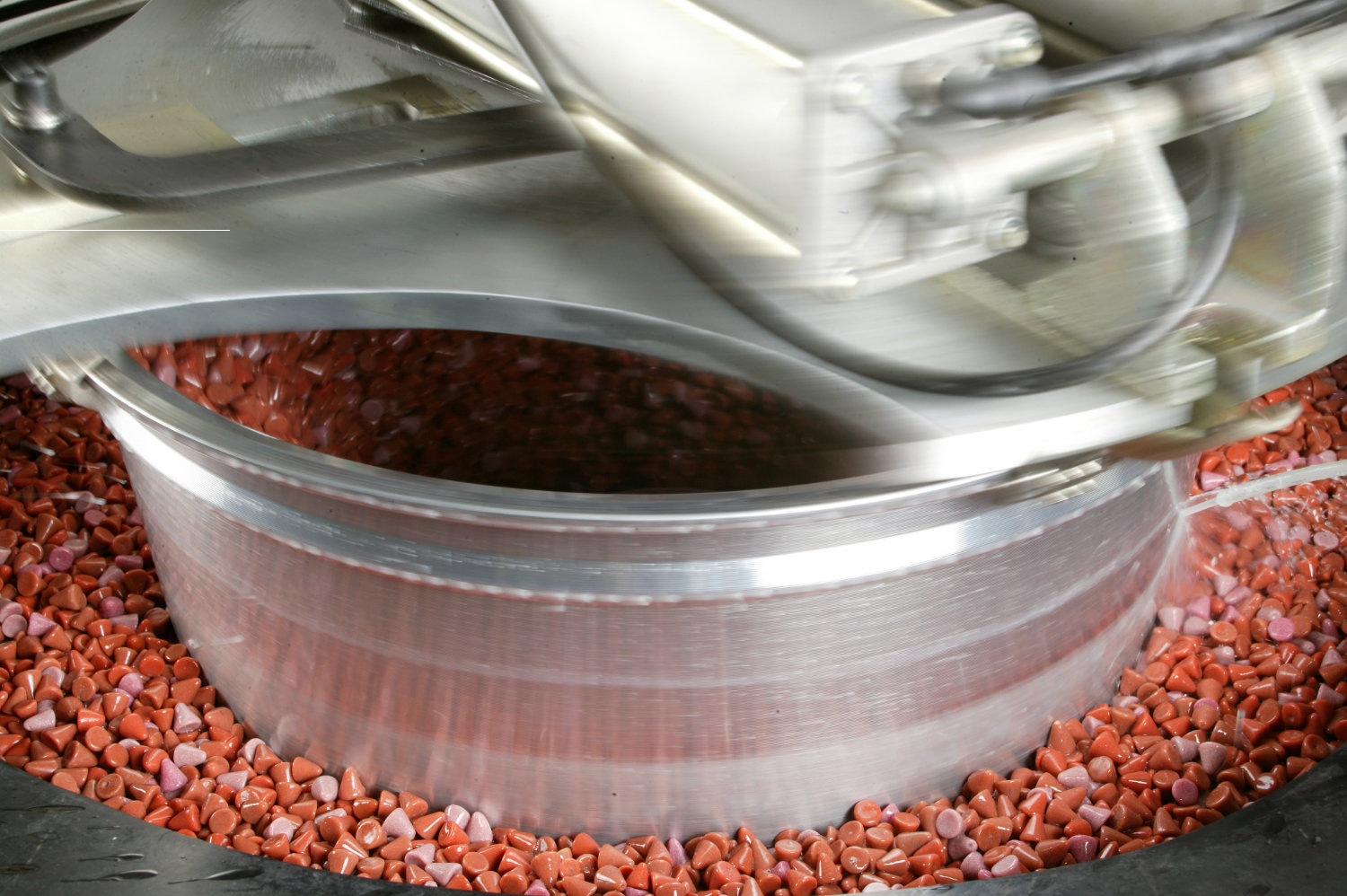

Plunge grinding

Working movement

  • Orbital/vertical or centric/vertical

  • Incl. adjustable regulation of the immersion depth

  • Drive via gear/servo motors

  • Optional: lifting axis via hydraulic drive

Work spindle drives

  • Adjustable carousel and spindle drive

  • Separate drive of the inner spindle

  • Simple controlled carousel and spindle drive

Workpiece clamping

  • Manual / automatic

  • Customised gripper solutions

Working container

  • Diameter:

    50 Inch*

  • Depth:

    500 / 600 / 700 mm*

  • * other sizes on request

Options

  • 2 x vibration motor on the container for generating a relative movement and mixing the abrasives

  • Sound insulation enclosure

  • Level monitoring of grinding wheels

  • Reversal of direction of rotation

  • Automatic loading and unloading system
