BASIC

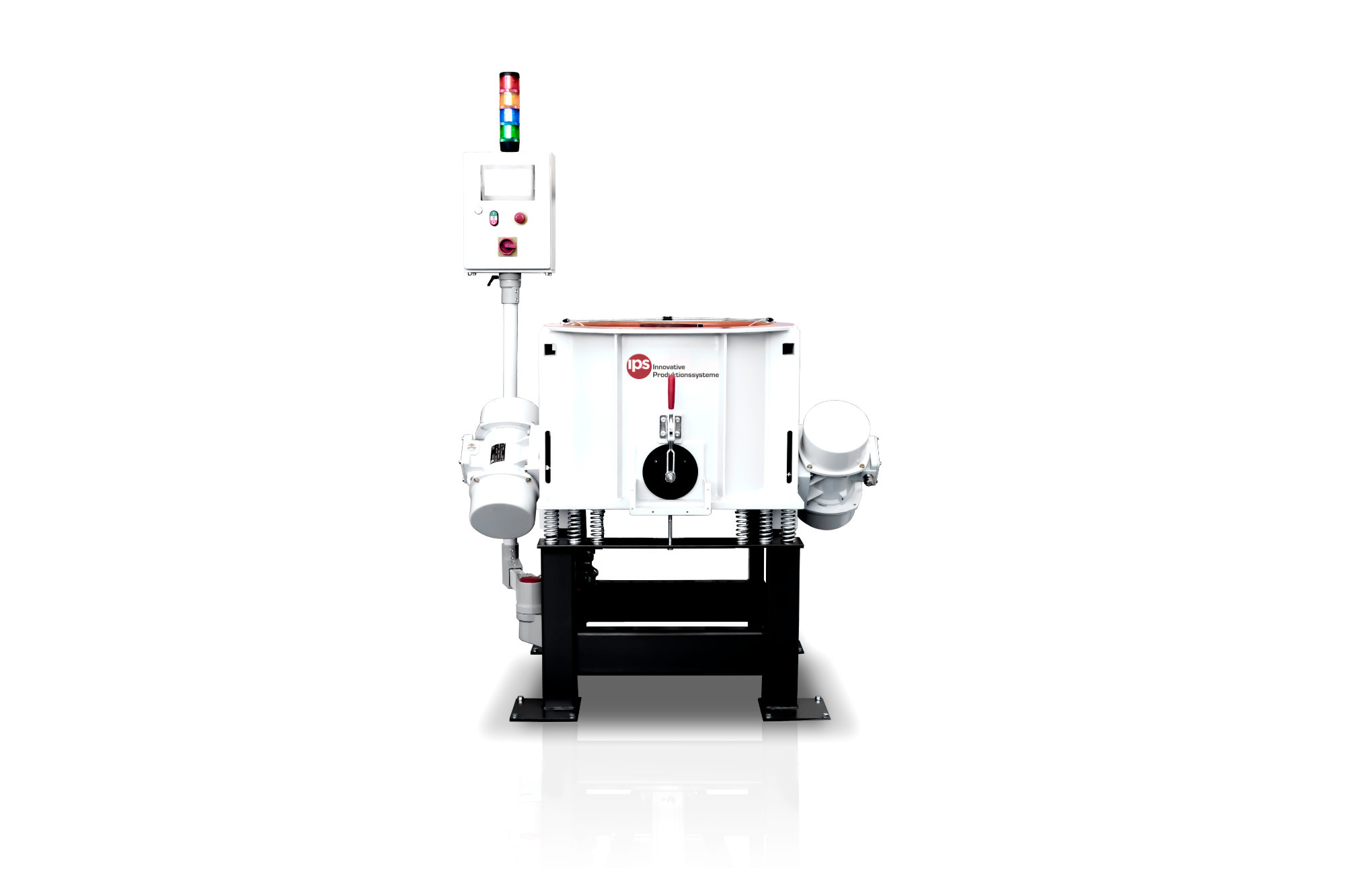

BASIC serie

The Basic series does without a centre mandrel and thus offers the possibility that components of various sizes can move freely in the abrasive-water-compound mixture. The components are removed manually from the container or via the granulate outlet.
The machine can be retrofitted with a fixed or extendable centre mandrel at any time.
To support the centrifugal force effect (flow channel), a plastic cylinder flange can be retrofitted as an option.

Frame sizes

  • Container heights:

    400 / 500 / 600 mm

  • Diameter:

    22“ till 50“ (560 – 1.270 mm)

  • Drive capacities:

    2 x 0,55 – 5,5 KW*

  • Speed:

    1.500 – 3.000 R/min*

  • Connector:

    400 V / 50 Hz; CEE connector*

  • *Depending on the machine size and customer application.

Equipment

  • Base frame with adjustable machine feet

  • Working container made of sheet steel - welded construction

  • Two vibration motors with high adjustable centrifugal forces

  • Dosing system for compound

Control types

    • Control with push-button and digital timer as well as operating hours counter
    • Control with touch panel and MINI-PLC
    • PLC control Siemens S7 - customer-specific

Options

  • Magnetic chucks

  • Conversion kit fixed centre spike

  • Conversion kit movable centre mandrel

  • Integrated lifting station with pump for process water recovery

  • Sound insulation lid

  • Sound insulation enclosure

  • Granulate level monitoring

  • Container temperature control

  • Part separation (customer-specific)

  • FlexAngle - Adjust motor position individually

Good to know – FlexAngle

With their flexibly adjustable motor positions, the BASIC, ECO and INNO - "FlexAngle" series is the ideal solution for achieving an extremely precise surface result.

FlexAngle

Positive and non-positive motor position

Individual setting

Adjustable in 2° steps

ECO

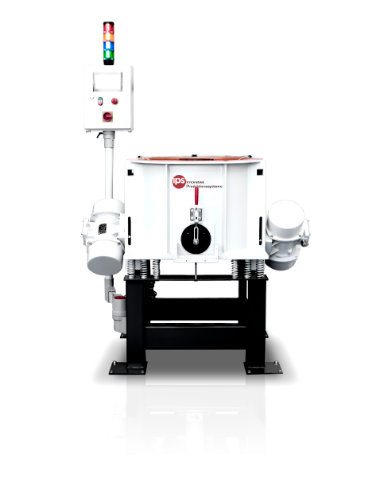

ECO series

The ECO series has a fixed centre mandrel on which the workpiece is mechanically fixed and which also supports the flow direction of the granulate.
The machine can be retrofitted with an extendable centre mandrel at any time.

Frame sizes

  • Container heights:

    400 / 500 / 600 mm

  • Diameter:

    22“ till 50“ (560 – 1.270 mm)

  • Drive capacities:

    2 x 0,55 – 5,5 KW*

  • Speed:

    1.500 – 3.000 R/min*

  • Connector:

    400 V / 50 Hz; CEE connector*

  • *Depending on the machine size and customer application.

Equipment

  • Base frame with adjustable machine feet

  • Working container made of sheet steel - welded construction

  • Two vibration motors with high adjustable centrifugal forces

  • Dosing system for compound

Control type

    • Control with push-button and digital timer as well as operating hours counter
    • Control with touch panel and MINI-PLC
    • PLC control Siemens S7 - customer-specific

Options

  • Magnetic chucks

  • Conversion kit fixed centre spike

  • Conversion kit movable centre mandrel

  • Integrated lifting station with pump for process water recovery

  • Sound insulation lid

  • Sound insulation enclosure

  • Granulate level monitoring

  • Container temperature control

  • Part separation (customer-specific)

  • FlexAngle - Adjust motor position individually

  • Automatic clamping system ¹

  • Customised clamping systems ¹

  • Integration in automated production line (Smart Factory) possible ¹

  • (¹) Complementary options compared to BASIC

Good to know – FlexAngle

With their flexibly adjustable motor positions, the BASIC, ECO and INNO - "FlexAngle" series is the ideal solution for achieving an extremely precise surface result.

FlexAngle

Positive and non-positive motor position

Individual setting

Adjustable in 2° steps

INNO

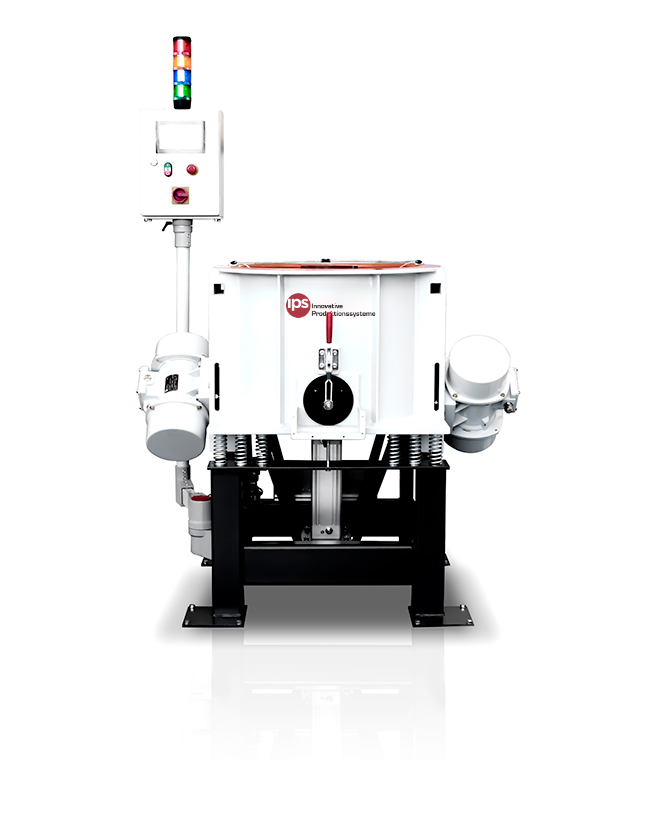

INNO series

The INNO series is characterised by a pneumatically extendable centre mandrel on which the workpiece is mechanically fixed. This significantly simplifies loading and unloading. Emptying the container for loading and unloading components is no longer necessary and thus saves valuable process time.

Frame sizes

  • Container heights:

    400 / 500 / 600 mm

  • Diameter:

    22“ till 50“ (560 – 1.270 mm)

  • Drive capacities:

    2 x 0,55 – 5,5 KW*

  • Speed:

    1.500 – 3.000 R/min*

  • Connector:

    400 V / 50 Hz; CEE connector*

  • *Depending on the machine size and customer application.

Equipment

  • Base frame with adjustable machine feet

  • Working container made of sheet steel - welded construction

  • Two vibration motors with high adjustable centrifugal forces

  • Dosing system for compound

Control types

    • Control with push-button and digital timer as well as operating hours counter
    • Control with touch panel and MINI-PLC
    • PLC control Siemens S7 - customer-specific

Options

  • Magnetic chucks

  • Conversion kit fixed centre spike

  • Conversion kit movable centre mandrel

  • Integrated lifting station with pump for process water recovery

  • Sound insulation lid

  • Sound insulation enclosure

  • Granulate level monitoring

  • Container temperature control

  • Part separation (customer-specific)

  • FlexAngle - Adjust motor position individually

  • Automatic clamping system ¹

  • Customised clamping systems ¹

  • Integration in automated production line (Smart Factory) possible ¹

  • Funnel with scraper brush ²

  • Granulate level monitoring ²

  • (¹) Complementary options compared to BASIC

  • (²) Complementary options compared to BASIC and ECO

Good to know – FlexAngle

With their flexibly adjustable motor positions, the BASIC, ECO and INNO - "FlexAngle" series is the ideal solution for achieving an extremely precise surface result.

FlexAngle

Positive and non-positive motor position

Individual setting

Adjustable in 2° steps
